The term cast iron, like the term steel, identifies a large family of
ferrous alloys. Cast irons are multicomponent ferrous alloys. They
contain major (iron, carbon, silicon), minor (<0.01%),
and often alloying (>0.01%) elements.
Cast iron has higher carbon and silicon contents than steel. Because of the
higher carbon content, the structure of cast iron, as opposed to that of
steel, exhibits a rich carbon phase. Depending primarily on composition,
cooling rate and melt treatment, cast iron can solidify according to
the thermodynamically metastable Fe-Fe3C system or the
stable Fe-Gr system.
When the metastable path is followed, the rich carbon phase in the
eutectic is the iron carbide; when the stable solidification path
is followed, the rich carbon phase is graphite. Referring only to the
binary Fe-Fe3C or Fe-Gr system, cast iron can be defined
as an iron-carbon alloy with more than 2% C. Important notice
is that silicon and other alloying elements may considerably change
the maximum solubility of carbon in austenite (g). Therefore, in
exceptional cases, alloys with less than 2% C can solidify with
a eutectic structure and therefore still belong to the family of cast iron.
The formation of stable or metastable eutectic is a
function of many factors including the nucleation potential of the liquid,
chemical composition, and cooling rate. The first two factors determine
the graphitization potential of the iron. A high graphitization potential
will result in irons with graphite as the rich carbon phase, while
a low graphitization potential will result in irons with iron carbide.
The two basic types of eutectics - the stable austenite-graphite or the
metastable austenite-iron carbide (Fe3C) - have wide differences in
their mechanical properties, such as strength, hardness, toughness, and ductility. Therefore, the basic scope of the metallurgical processing of cast iron is to manipulate the type, amount, and morphology of the eutectic in order to achieve the desired mechanical properties.
Classification
Historically, the first classification of cast iron was based on its
fracture. Two types of iron were initially recognised:
- White iron: Exhibits a white, crystalline fracture
surface because fracture occurs along the iron carbide plates;
it is the result of metastable solidification (Fe3C eutectic)
- Gray iron: Exhibits a gray fracture surface because fracture
occurs along the graphite plates (flakes); it is the result of stable
solidification (Gr eutectic).
With the advent of metallography, and as the body of knowledge pertinent
to cast iron increased, other classifications based on microstructural
features became possible:
- Graphite shape: Lamellar (flake) graphite (FG), spheroidal (nodular)
graphite (SG), compacted (vermicular) graphite (CG), and temper graphite
(TG); temper graphite results from ? solid-state reaction (malleabilization.)
- Matrix: Ferritic, pearlitic, austenitic, martensitic,
bainitic (austempered).
This classification is seldom used by the floor foundryman. The most
widely used terminology is the commercial one. A first division can
be made in two categories:
- Common cast irons: For general-purpose applications, they
are unalloyed or low alloyed
- Special cast irons: For special applications, generally
high alloyed.
The correspondence between commercial and microstructural classification,
as well as the final processing stage in obtaining common cast irons,
is given in Fig. 2.
Special cast irons differ from the common cast irons mainly in the higher
content of alloying elements (>3%), which promote microstructures having
special properties for elevated-temperature applications, corrosion
resistance, and wear resistance. A classification of the main types
of special cast irons is shown in Fig. 1.
Fig. 1. Classification of special high - alloy cast iron

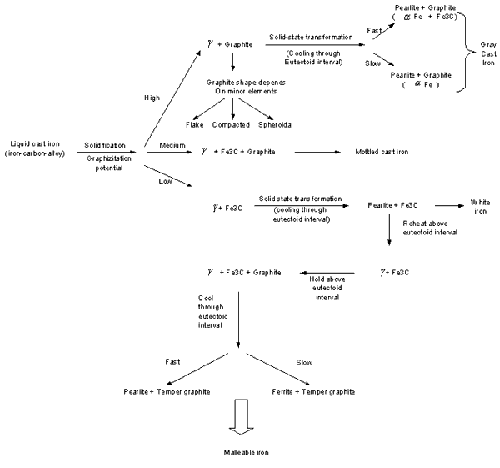

Fig.2. Basic microstructures and processing for obtaining
common commercial cast irons
